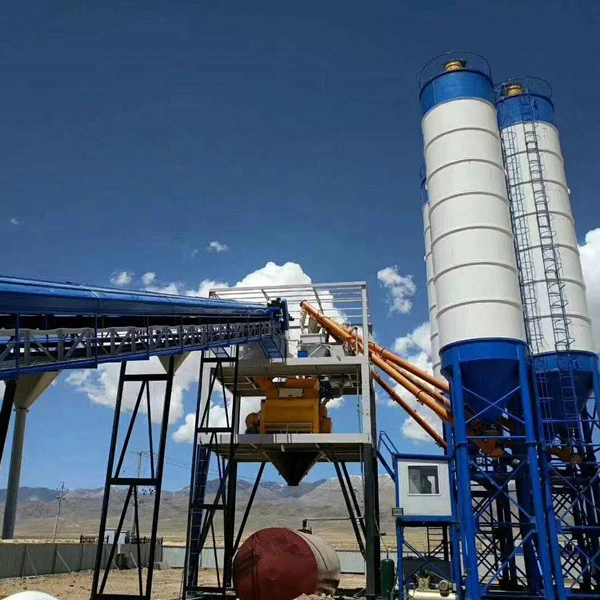

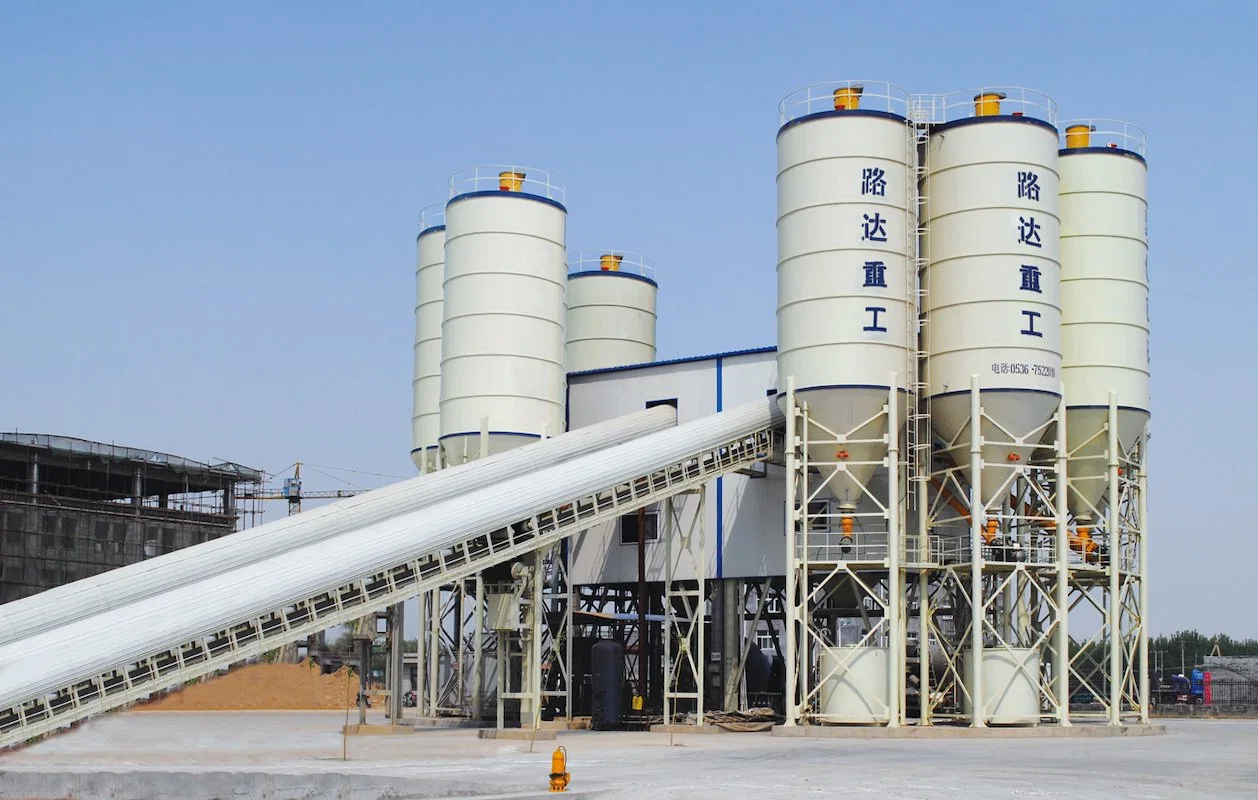

Hzs Commercial Ready Wet Concrete Cement Mixing Plant

LUDA brand HBS / HZS series concrete mixing plant from 60m3/h to 270m3/h output capacityAdvantage:             High productivity, fast installation and disassemble; High reliable and safety; Low energy consumption and small load occupation, also many types layout according to different usage co

Featured Products

LUDA brand HBS / HZS series concrete mixing plant from 60m3/h to 270m3/h output capacity

Advantage:
             High productivity, fast installation and disassemble; High reliable and safety; Low energy consumption and small load occupation, also many types layout according to different usage condition.
1-The mixer is SICOMA brand, compulsory twin-shaft type, no manual cleaning, no material sticky.
2-LUDA brand concrete mixing plant is modular design, easy to installation and trial run fast, convenient.
3-The discharging hopper realizes quick unloading with anti-blocking design, the running is stable and reliable.

Parameter:
ModelHLS 60 HLS 90 HLS 120 HLS 180 HLS 240 HLS 360
Theory productivity60m3/h90m3/h120m3/h180m3/h240m3/h320m3/h
Mainframe model JS1000JS1500JS2000JS3000JS4000JS6000
Normal volume of mainframe 1000L1500L2000L3000L4000L6000L
The maximum particle size of mixing aggregate 80mm
Power of mixing motor 2×18.5kw2×30kw2×37kw2×55kw2×75kw4×55kw
Upgrade machines power of aggregate hopper15kw22kw30kw30kw45kw2×45kw
The width of upgrade machine belt 650mm800mm1000mm1000mm1200mm1400mm
Transportation capacity of belt conveyor of aggregate upgrade machine350t/h400t/h600t/h600t/h700t/h900t/h
Aggregate batching systemPL1600PL2400PL3200Floor type batching machine
Volume of aggregate soil3×6m33×15m34×20m34×30m34×35 m3;4×100m3
Batching capacity of aggregate 1600L2400L3200L4800L4800L4800L
Kinds of aggregate 334~6
Volume and number of powder silo 50t/100t(choice according to request of user)50t/100t/150t/200t(choice according to request of user)50t/100t/150t/200t(choice according to request of user)100/200/300t (choice according to request of user)200/300t (choice according to request of user)300t/350 (choice according to request of user)
Powder screw conveyor 60t/h(choice according to request of user)60t/h(choice according to request of user)60t/h(choice according to request of user)80t/h(choice according to request of user)110t/h(choice according to request of user)120t/h(choice according to request of user)
Metering range and accuracy of aggregate G (0-2000)±2%kg(0-3000)±2%kg4×3500±2%kg4×3500±2%kg4×4500±2%kg4×6500±2%kg
Metering range and accuracy of water W (0-300)±1%kg(0-400)±1%kg(0-500)±2%kg(0-800)±2%kg(0-1000)±2%kg(0-1600)±2%kg
Weighing range and accuracy of cement C (0-600)±1%kg(0-1000)±1%kg(0-1200)±2%kg(0-2000)±2%kg(0-2400)±2%kg(0-3500)±2%kg
Weighing range and accuracy of fly ash F (0-300)±1%kg(choice according to request of user)(0-400)±1%kg(choice according to request of user)(0-500)±2%kg(0-600)±2%kg(0-800)±2%kg(0-1200)±2%kg
Weighing range and accuracy of admixture A (0-50)±1%kg(0-80)±1%kg(0-100)±1%kg(0-120)±1%kg
Cycle 60S
Discharge height 3800mm4000mm
Power of the whole machine About 80kw (not contain screw conveyor)About 110kw (not contain screw conveyor)About145kw (not contain screw conveyor)About 190kw (contain conveyor)About255kw (contain conveyor)About 400kw (not contain screw conveyor)

Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant

Company Overview:
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant
Produce Line:
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant

Exhibition:
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant

Delivery:
  Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant
Hzs Commercial Ready Wet Concrete Cement Mixing Batch Plant


             We also produce asphalt mixing plant, stabilized soil mixing plant, if you need please contact with us, we will supply high quality with competitive price to you, and will supply best design arrangement according to your working condition.
