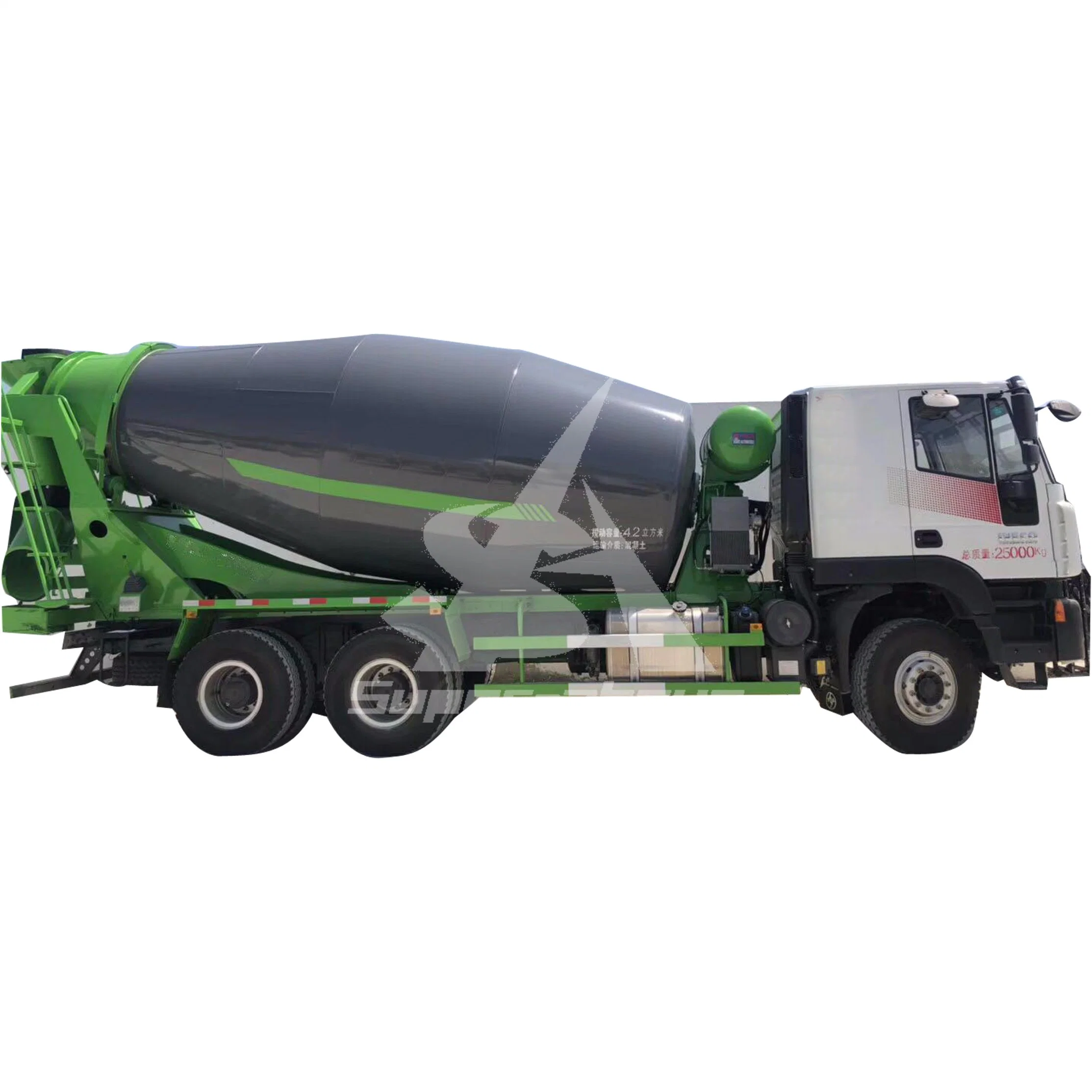

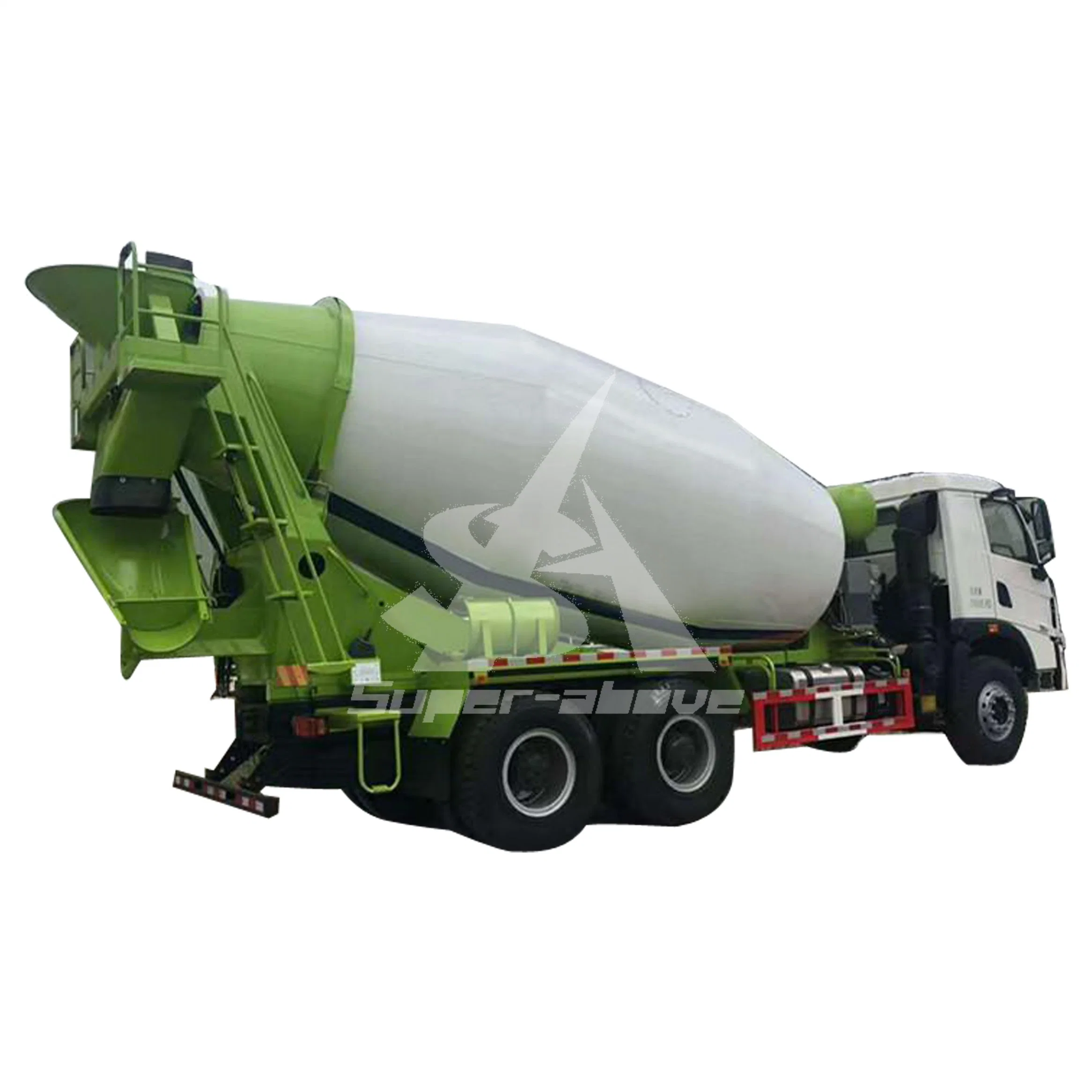

HOWO brand new cement mixer truck 12m3 14m3 16m3 concrete mixer truck/truck cement mixer truck

SpecificationTruck Model    SACMT24Dimension(Lx W xH)(unloaded)(mm)8560X2496X3048Approaching angle/Departure angle(°)16/24Overhang(front/rear) (mm)1550/1860wheelbase(mm)3825+1350Max speed(km/h)90        Curb weight(kg)10580total Weight(kg)25000Engine(Steyr technology, made in China)Mod

Featured Products

HOWO Brand New Cement Mixer Truck 12m3 14m3 16m3 Concrete Mixer Truck/Cement Mixer for Truck
HOWO Brand New Cement Mixer Truck 12m3 14m3 16m3 Concrete Mixer Truck/Cement Mixer for Truck
HOWO Brand New Cement Mixer Truck 12m3 14m3 16m3 Concrete Mixer Truck/Cement Mixer for Truck

Specification
Truck Model    SACMT24
Dimension(Lx W xH)(unloaded)(mm)8560X2496X3048
Approaching angle/Departure angle(°)16/24
Overhang(front/rear) (mm)1550/1860
wheelbase(mm)3825+1350
Max speed(km/h)90
Curb weight(kg)10580
total Weight(kg)25000
Engine
(Steyr technology, made in China)
ModelWD615.69water-cooled,four strokes,6 cylinders in line with water cooling,directly injection
Fuel typeDiesel
Horse Power, max(kw/rpm)336HP
EmissionEURO4
Fuel tanker capacity(L)400L
TransmissionModelHW19710,10 Forward gears,2 Reverse
Brake systemService brakeDual circuit compressed air brake
Parking brakespring energy, compressed air operating on rear wheels
Steering systemModelZF 8118
Front axleHF9
Rear axleHC16
ColorWhite, red,Yellow . (Optional)
Tyre12.00R20
Electrical systemBattery2X12V/165Ah
Alternator24V-1540kw
Starter7.5Kw/24V

Introduction
1.  Concrete mixer truck opting left hand drive or right hand driven.
2.  Optional for chassis: 4x2, 4x4,6x4, 6x6, 8x4, 8x8 models.
3.  3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12 m3 14m3 etc, many capacity are available to choose.
4.  Provide different brand chassis: DONGFENG, SINTRUK, SHACMAN, NORTH BENS, FOTON,
     ROWOR, HINO, ISUZU, HUUNDAI, JMC.

Feature
1.  The tank body uses double helical blades that makes its density moderate, with symmetrical mixing
     board on the front taper place; double blades and guiding blades of discharge are installed on the outlet
     of tank, which makes the discharge more evenly, faster in speed, and convenient for the pumping transportation
     of other devices (such as automobile pump).
2.  Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub frame
     uses high intensity square tube with damping in the central area that can play role when vehicle is at full load
     and under the bad conditions of road, which can  lower the center of gravity of truck and make it move more
     smoothly.
3.  The upload production of this mixer adopts multiple advanced technology, which can produce various types
     of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.

System: Schwing Technology
Chassis option: Isuzu/Benz/Howo/Sachman/Dongfeng/Sinotruck/Foton/JAC
