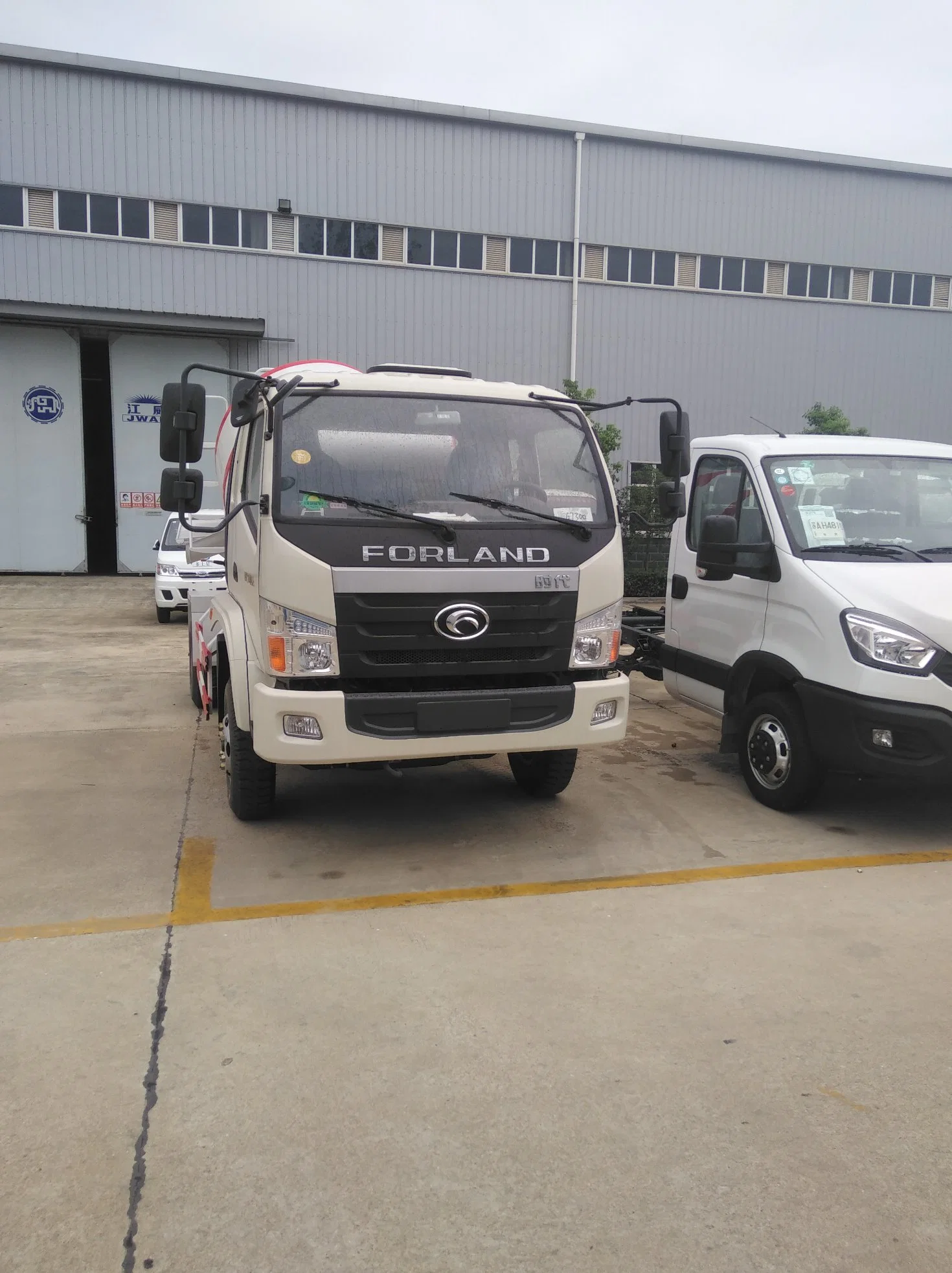

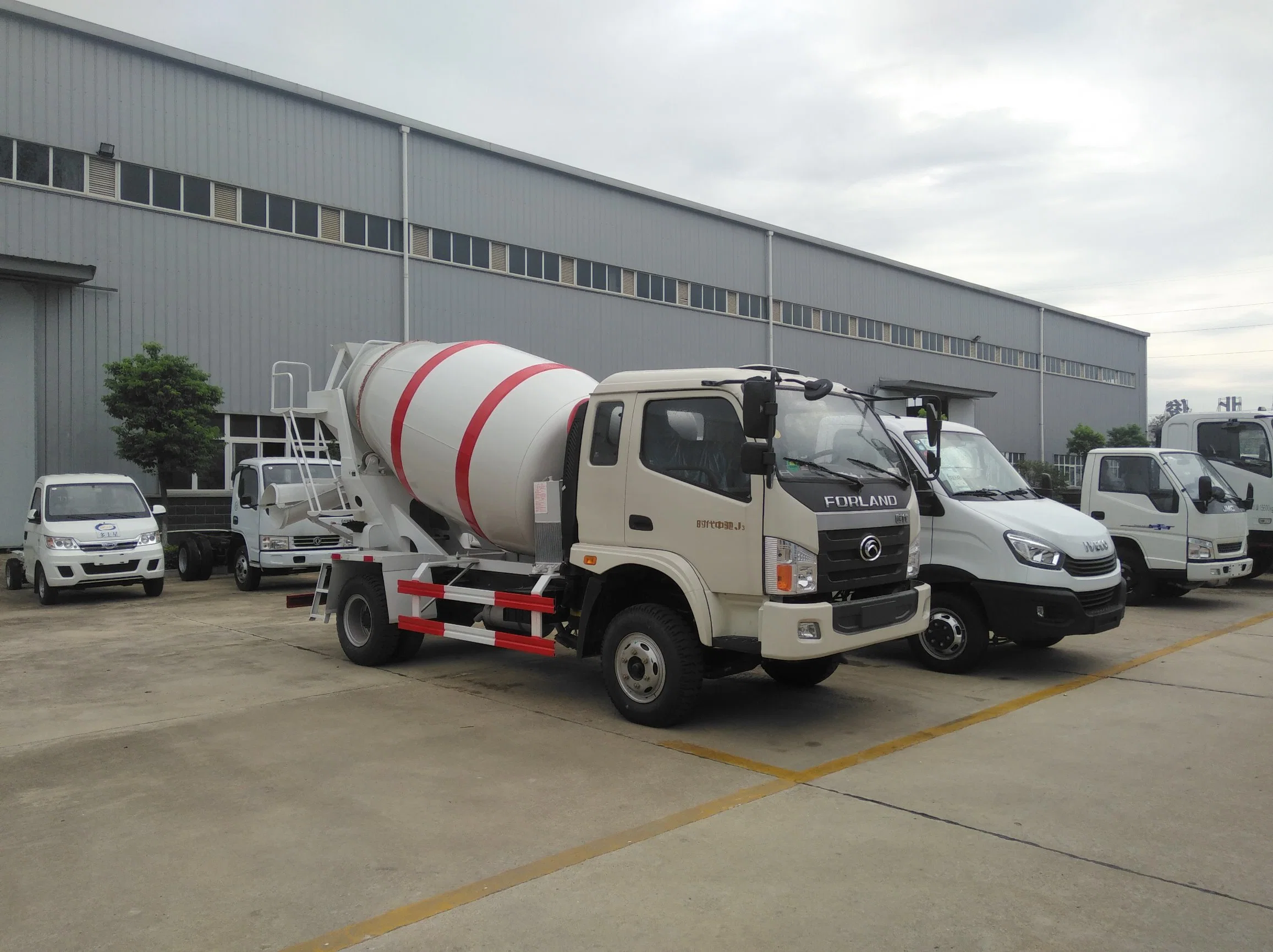

Forland 6CBM Cement Carrying Construction Equipment Cement Mixing Truck Concrete Mixer Pump Truck
Product Description:
Product Description:
1. Purpose: For long distance or short distance transporting concrete in construction site.
2. Main parts: Hydraulic pump, hydraulic motor, reducer and radiator etc.
3. Chassis: Dongfeng, SHACMAN or SINOTRUK 4x2 chassis for optional.
Specifications:
Cabin | Driving type 4x2, LHD | |
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6825×2400×3450 |
Wheel base (mm) | 3600 | |
Wheel track (front/rear) (mm) | 1500/1860 | |
Approach/Departure angle(°) | 32/14 | |
Weight in KGS | payload | 5300 |
Front axles loading capacity | 5150 | |
Rear axles loading capacity | 8410 | |
Max. driving speed(km/h) | 85 | |
Engine | Brand | yuchai |
Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power(HP) | 130 | |
Emission standard | Euro II | |
Gearbox | 5 forwards & 1 reverse | |
Steering | Left hand drive | |
Tire | 6 unit with one spare, 9.00-20 | |
Upper frame structure | ||
Mixer Drum | Mixer Capacity | 5 cubic meters |
Drum thickness | 6mm | |
Blade thickness | 4mm | |
Tanker Material: | Q345 Carbon Steel | |
Filling Rate(%) | 59 | |
Input Speed (m3/min) | ≥2.8 | |
Output Speed (m3/min) | ≥1.2 | |
Surplus Ratio | ≤0.5 | |
Tanker Rotate Speed(rpm) | 0~17 | |
Hydraulic Pump | Italy Brand: PMP | |
Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
Speed Reducer | Germany Brand: ZF | |
Radiator | KAITONG | |
Water Tank Volume(L) | 400 |
