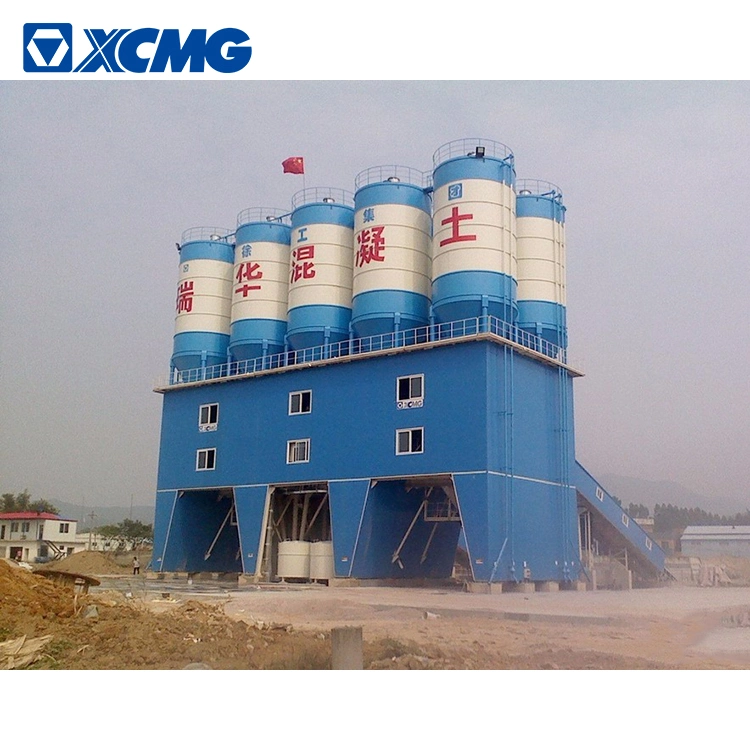

XCMG Official HZS120K 120m3/h Ready Mix Stationary Concrete Batching Plant.
HZS120 concrete mixing plant belongs to compulsory and efficiency equipment. It includes JS concrete mixer, PLD batching machine,cement silo,conveying system and control system.And also has the characteristic of mixing well, high productivity, highly automated, high flexibility, convenient operation, and good stability.
Concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.
Features and Advantages:
1.Adopting horizontal twin-shaft compulsory mixer.
2.The aggregate is measured accumulatively by electric scale.
3.Water and additive is measured accurately under the control of the computer.
4.The whole machine is controlled by computer which makes operation easy.
5.The main electric components are from famous brand.
Items | Unit | HZS120/2HZS120 |
Theoretical productivity | m3/h | 120/240 |
Dump height | m | 4 |
Model of main mixing machine | MAO3000/2000 | |
Mixing power | kW | 2X37 |
Nominal volume of main mixing machine | L | 2000 |
Production cycle | s | 60 |
Aggregate diameter | mm | ≤80 |
Aggregate bin volume | m3 | 4X25 |
Powder bin (optional)volume | t | 4×200 |
Batching plant capacity | L/bin | 3200 |
Inclined belt conveyor capacity | t/h | 900 |
Concrete spiral conveyor capacity | t/h | 90 |
Coal ash spiral conveyor capacity | t/h | 60 |
Standard installed capacity | kW | 210/420 |
Weighing range & accuracy of sand/stone | kg | (0~3600)±2% |
Weighing range & accuracy of cement | kg | (0~1000)±1% |
Weighing range & accuracy of coal ash | kg | (0~500)±1% |
Weighing range & accuracy of water | kg | (0~500)±1% |
Weighing range & accuracy of additives | kg | (0~50)±1% |
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
