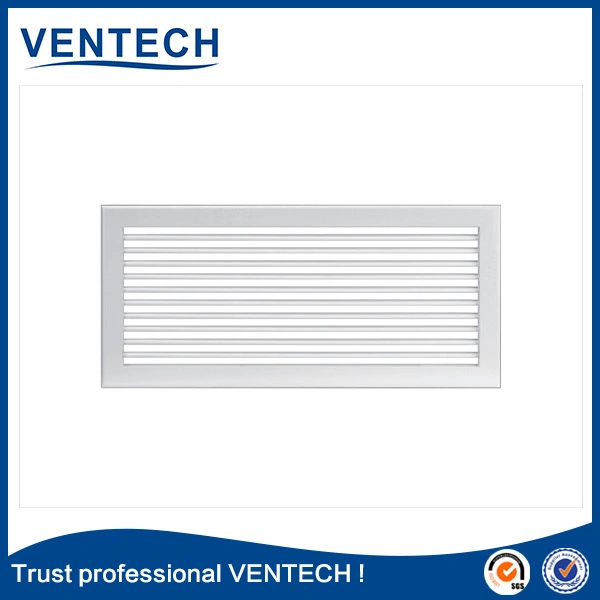

White Color Wall Air Grille for Ventilation Use
VENTECH, YOUR EXPECT FOR AIR DIFFUSER AND GRILLE

Smooth, quite, comfortable. Existing, but feel like nothing.



Ventech Ventilation diffuser is a device that is designed to provide air flow in a room thoroughly.

It works to increase the efficiency of air conditioning units by distributing cooling air. When an even airflow is maintained, drafts and hotspots in a room are eliminated. Providing greater comfort.

Ventech Ventilation diffuser is a device that is designed to provide air flow in a room thoroughly.

It works to increase the efficiency of air conditioning units by distributing cooling air. When an even airflow is maintained, drafts and hotspots in a room are eliminated. Providing greater comfort.

We can also supply....





Product intro

Single delfectioin grille supply or extract air variant for comfort zones and industial zones. It direct the air from air conditioning systems into the room. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air.
White Color Wall Air Grille for Ventilation UseWhite Color Wall Air Grille for Ventilation UseWhite Color Wall Air Grille for Ventilation Use



Type SDG-VA double deflection grilles have adjustable blades. Horizontal air discharge is four-way.

To give rooms an aesthetic, uniform look, Type SDG-VA diffusers may also be used for extract air.



DDG-VB is with highed removable core.





What is an aluminum double deflection air grille?

Material: High quality extruded aluminum profile(A6063)

Frame & Cores: Thickness 1.0mm,1.2mm

The frame is made of high quality extruded aluminum profile with advantages of corrosion resistance and rigidity.

Core of hinged time can be easily removable and interchangeable for better installation and maintenance. Great convenience for you!

We Ventech offer high quality, focusing on details carefully especially in power coated and welding corners details.

Automotive powder coated ensures no gaps at the welding corners and provides a good-looking square diffuser for clients.



Customized-made in size below:

·         Sizes: Customized-made in size:

·         Neck size:customized-made in size

·         Height: 30mm

·         Face size= neck size+60mm

How to make an aluminum single deflection grille?



In order to make a high quality single deflection grille, Ventech people introduce a whole production line with advanced stamping, punching machines which are operated by experienced workers.



All cores and frames are made by high-efficient machines, then comes to the installation line, we ventech also enjoy the wholly automotive squeezing machines.

Before polishing and filling the putty in the gaps, the air diffuser should be washed for 10mins then baked for 30mins.  Power coated is arranged behind the polishing step, by using totally-closed powder finishing line and parching space, the perfect diffuser rolls off the products line and ready to be packed, QC is the priority during each step of the mass productions. We have professional QC to check quality before products go to next step.





Optional Accessories

  • ·         Clips
  • ·               A: installation clip, used for connecting the diffuser/ grille to the celing or wall.
  • ·               B: damper fixing clip, used for connecting the diffuser/ grille to the damper.
  • ·         Coner protection
  • ·         Holes and screw
  • ·               Insteady of clips, some people prefer punching holes on frame, and instal the diffuser/ grille with screw.
  •           Damper (can be powder coating)
  • ·              OBD-VA, gear manual
  • ·              OBD-VB, screw manual

Notice: The above accessories are optionals. Without any specified, we deliver the products without any accessories.






Technical data:
single deflection grille
standard size H/L(mm)effective area(m²)air volume (m³/h)
200x1000.016158
200x1500.024213
250x1000.020183
250x1500.030267
300x1500.036321
300x2000.048468
500x2500.099896
600x3000.1651489
750x3000.1981890
1000x5000.3863615




Color:
  • ·         Ral classic color.
  • ·              -standard Ral 9016 or 9010
  • ·              -other colors optional.
  • ·         Anodized
  • ·         Matt or smooth surface


Package:

·         pack in carton, pallect, container.

·         10pcs/ctn without damper

·         5pcs/ctn with damper
