60W Outside bright white wireless Solar Power Energy LED Street Garden Light

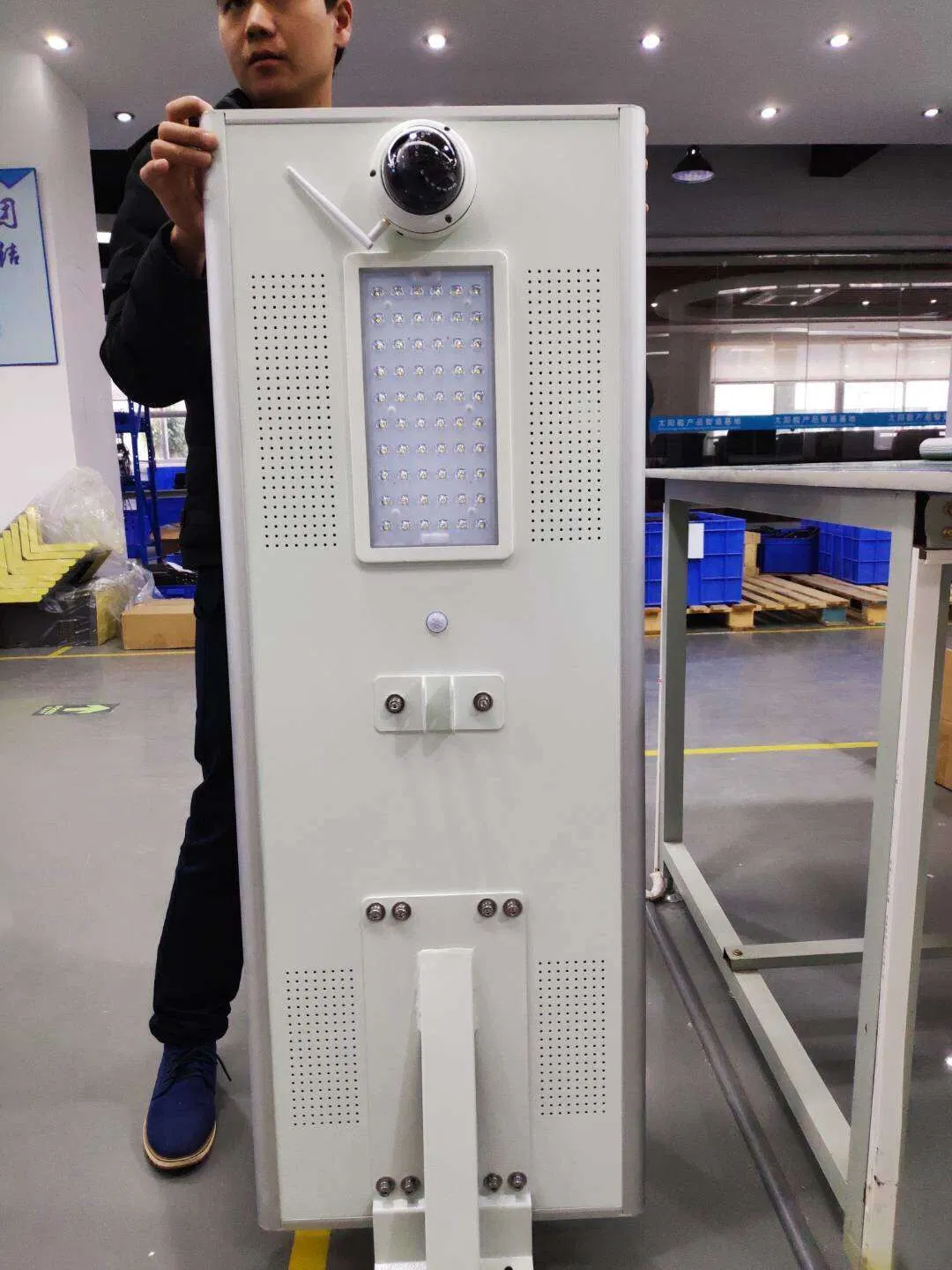

Outdoor Waterproof All In One solar street light with CCTV camera
Product Features:
1."All in One solar street light " could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation.
2."All in One solar street light" adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0ºC~+60ºC, when temperature goes lower than 0ºC, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0ºC. Discharging temperature at night is between: -20ºC~+60ºC, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.
3.Battery of the "All in One solar street light" can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
4.Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
5.All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.
Integrated solar street light solar lighting system 90w all in one light 100 w
LED light | 100W (Bridgelux,USA) |
Battery | 82AH, Lithium battery |
Solar panel | 130W/18V,MONO |
Work mode | Constant+dim light |
Lumen | 10000-11000Lm |
Material | Aluminium alloy |
Installation height | 9-11m |
Top diameter of pole | 70-80mm |
N.G/G.W (kg) | 25/26 |
Product size(mm) | 1570*460*45 |
Carton size(mm) | 1650*530*120 , 410*380*240 |
20GP/40HQ Capacity | 140/348 units |
Model | NSP50-APP | NSP60-APP | NSP80-APP | |
LED Light | Max power | 12V 50W | 12V 60W | 12V 80W |
Led chip | Bridgelux , USA | |||
Lumen (LM) | 5000-5500Lm | 6000-6600Lm | 8000-9600Lm | |
Life time | 50,000hours | |||
Solar panel | Max power | 18V/80W | 18V/90W | 18V/100W |
Solar cell | High efficiency, Mono, Solarworld brand | |||
Life time | 25years | |||
Battery | Capacity | 36AH | 42AH | 60AH |
Type | Lithium battery | |||
Life time | 5 years | |||
Charging | By sun | 6-10 hours effective sunlight | ||
Lighting time | Days | 3-4 rainy days | ||
Work temp | Range(ºC) | Charging:0ºC~+60ºC, discharging: -20ºC~+60ºC storage:0ºC~+45ºC | ||
Colour temp | Range(k) | 6000-6500k | ||
Height | Range (m) | 8-9m | 8-9m | 8-10m |
Spacing | Range (m) | 25-30m | 25-30m | 35-42m |
Work mode | Light on at dusk, light off at dawn auto. Motion sensor mode, Dimming mode,Time control mode for choice. | |||
Material | Aluminium alloy | |||
Certificate | CE / ROHS / IP65 |
Unique Design: All-in-one Solar Street Light
- This integrated solar light puts a solar panel, LED lamp, battery, smart sensor and controller all in one box, simply and artfully.
- The all-in-one design makes the lights lighter and smaller than the split type of solar street light.
- This design allows for easy installation and shipment.
- Easy to maintain and replace.
Easy Installation
- There is no need to wire; everything is integrated in one box.
- Very easy to install: just fix the support bracket and tailstock on the light pole.
- No special pole is required; any cylindrical pillar with a diameter between 50-90mm can be used.
Projects:
Applications:
- Street Lighting
- Park Lighting
- Roadway Lighting
- Fence Lighting
- Pathway Lighting
- Campus Lighting
- Parking Lot Lighting
- Boat Dock Lighting
- Yard Lighting
- Remote Area Lighting
- Sidewalk Lighting
- Shopping Mall Parking Lighting
- Private Road Lighting
- Factory Yard Lighting
- Roundabout Lighting
- Ramp Lighting
- Monument Lighting
- Farm and Ranch Lighting
- Wildlife Area Lighting
- Countryside Projects
FAQ
1. can the lamp work in marine environment?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment. The waterproof is IP65.
2. how many day will work in continuously rainy days?
it can work continuously in 3-4 rainy days.
3. light on time and working mode?
Light-control(light on at dusk, light off at dawn auto)
4. What's the color temperature you can make?
The temperature is 6000-6500K, it canbe customized according customer's request.
5. can you accept OEM, is it free?
Yes, we supply OEM service.
6. what't the life span and how to change?
The lifespan of battery is 5years. It is very easy to replace it..
7. Do you accept customized production?
Yes, we accept ODM for bulk order. The power of solar panel, LED light, capcity of battery canbe customized.
8. can the lamp work in cold place?
Charging:0ºC~+60ºC,discharging: -20ºC~+60ºC storage:0ºC~+45ºC
work condition:
temperature during the day should be higher than 0ºC
temperature in night should be higher than -20ºC.
Warranty 3 years warranty time for the all in one solar street light.
