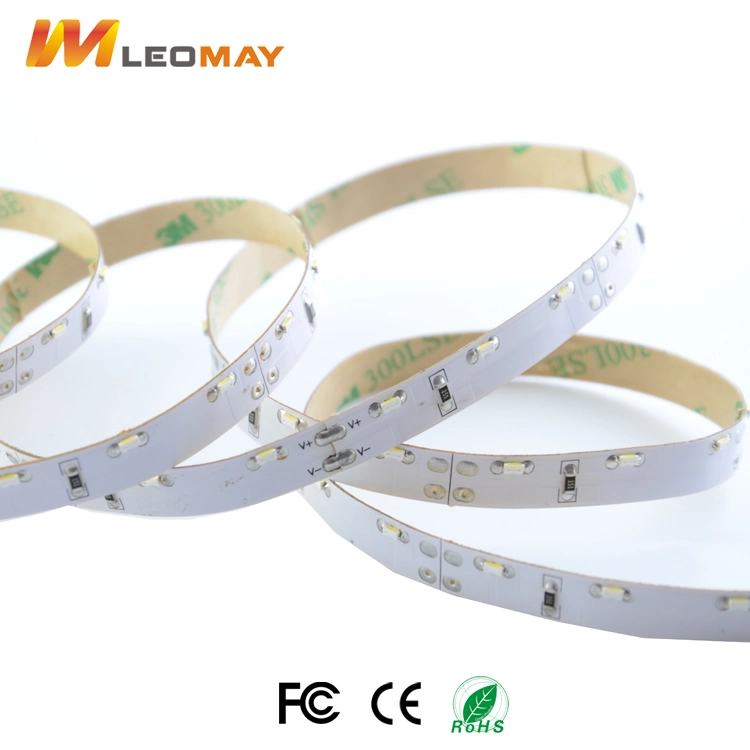

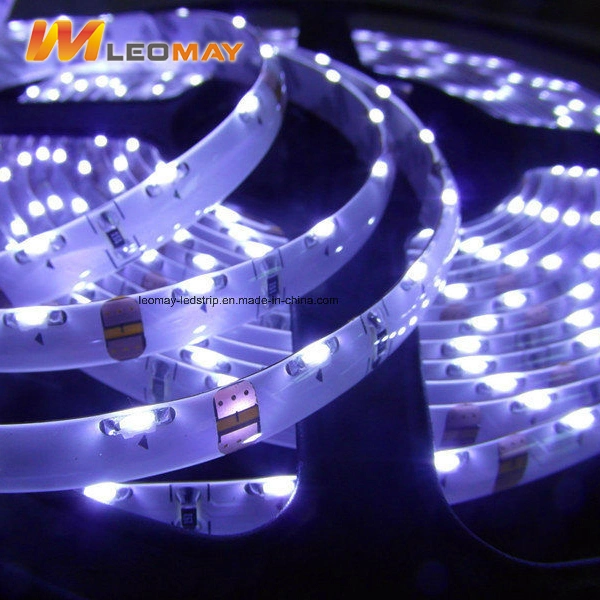

Non-Waterproof 335 Edge emitting LED Strip Light/ cold white warm white LED tape
Non-Waterproof 335 Edge emitting LED Strip Light/ cold white warm white LED tape
Product Specification:

Model NO

LM335-WN60-12V-8MM

Product Name

SMD335  60LEDS/M  LED strips

PCB Width

8MM

LED Qty/m

60leds/m 335

PCB Materials

2Oz Double-sided coated pure copper(can print your logo on PCB)

Voltage(V)

12V DC

Rated Power(W)

4.8W/M, 24W/5M

Luminous(lm/m)

420lm/m

LED Chip Brand

Sanan(Epistar optional)

LEDs material

packaged by 99.99% pure gold wire

LED BINs

3-Step/5-Step, same BIN for each order

LEDs Supplier

Honglitronic (Osram/Samsung optional)

CRI(RA>)

CRI80(CRI 90 optional)

Color

W/WW/CW/R/G/B/Y/O/UV/Pink

Color Tempertature

2200K,2700K,3000K,3500K,4000K,6000K,7000K

IP Rate

IP20 (IP54/IP67/IP68 optional)

View Angle

120

Product Size(mm)

8*5000mm

Package(m/rol)

5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)

Working Temperature(ºC)

-20-60

Cutting Unit

3 LEDs

Adhesive Tape

9495 3000LSE 3M tape

Dimmable

Yes

Certificate

UL,CE,Rohs,FCC.

Warranty

3 Years


Product Features:

 1, No UV/IR radiation and light source long life-span(>5000 hours).

2, Energy saving and environmental conservation,ECO-friendly,NO mercury

3, Superior color rendering.CRI>80,90,96

4. The color and width of PCB board could be choosed.

5. PCB thickness can be 2oz, 3oz.

6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.

7. The LED quantity can be choosed, from 30leds/m to 480leds/m.

8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.

9, Reliable SMD Source, super brightness, high CRI,low decay.

10,Easy installation using 3M tape or plastic clip to fix it

11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.

12,Print your logo on the PCB, and do customized packages are acceptable.



Our advantages:

1, UL,FCC,CE,RoHS,CCC,ISO certificates.

2, OEM or ODM is acceptable.

3, Strict quality control.

4,Fast delivery and good service,Email or inquiry will be replied in 2hours.(weekends or holidays within 12hours),and also good after-sale services.

5, Our main markets are European and North American,so high quality only.

6, Supply the full led strip products (with strip accessory ) to make you more easy with LED Business.

7,We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Meanwell power supply.Mi.light controller,connectors, etc.



Payment Terms:

T/T(Bank Transfer),Paypal,Western union,Money Garm,Credit Card,Master Card.



MOQ:

For standard products, no MOQ, 1M is also acceptable.
