Description

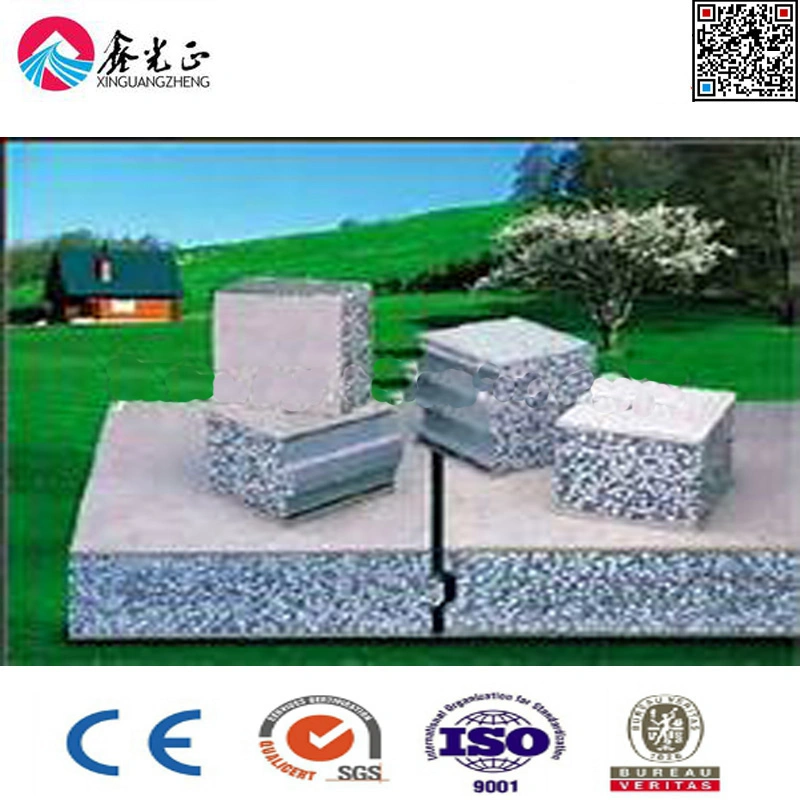

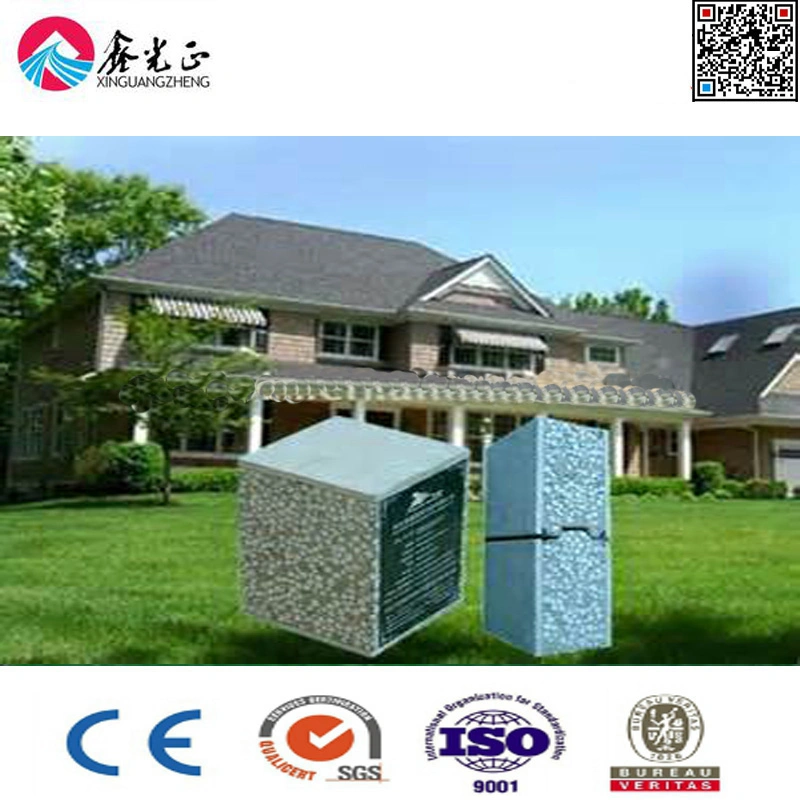

XINRI EPS cement sandwich panel is a kind of light weight energy saving wall material taking reinforced fiber cement board as face panel, within cement, EPS, fly ash as core material and forming by one time compound.Its birth marks the wall material will appear renewal trend, instead of traditional block, the new architectural thoughts and its outstanding performance meet the requirements of modern architectural environment.
Specification
| Name | XINRI EPS Cement Sandwich Panel | ||
Specification(mm) | Quantity(m2) | Quantity(pcs) | Weight(kg) |
| 2270x610x60mm | 446 | 322 | 45-48 |
| 2270*610*75mm | 359 | 259 | 50-53 |
| 2270x610x90mm | 298 | 215 | 55-58 |
| 2270*610*100mm | 262 | 189 | 60-65 |
| 2270x610x120mm | 223 | 161 | 65-75 |
| 2270x610x150mm | 175 | 126 | 80-90 |
| 2270x610x180mm | 149 | 107 | 95-100 |
Advantage of EPS-cement sandwich panel
1. Energy saving, Green, Environmental friendly
The raw materials do not include harmful substances. Energy-saving effects of the building is greatly improved It is highly recommended by the government.
2. Durable
70+ years building life span.
3. Strong
Hard surface and no damage after impacting. The hanging strength of single spot is 100kg, can nail and affix tile.
4. Fireproof
Panels have a fire rating of 4 hours. Grade A of National standard.
5. Sound insulation
The sound insulation capacity in the air is 35db-45db (according to National standard: GBJ121-88).
6. Waterproof, dampproof
No bead on wall panel surface in wet climate.
7. Quakeproof
More suitable for seismic & cyclone prone zones.
8. Unique tongue and groove
Specially designed tongue and groove arrangement ensures a perfect joint and makes construction faster.
9. Rapid installation
Being light in weight, handling & installation become very easy. One worker can do 20 sqm every day.
10. Dry working
It is very convenient, less building rubbish left after installation and clean up easily.
11. Excellent surface finish
The wallboard surface is level. You can plaster directly for inner decoration. It also can take all decorative treatment.
Usage of the EPS-cement sandwich panel
Floor System
Villa&Exterior Wall System
Interior Partition Syste
Roof System
