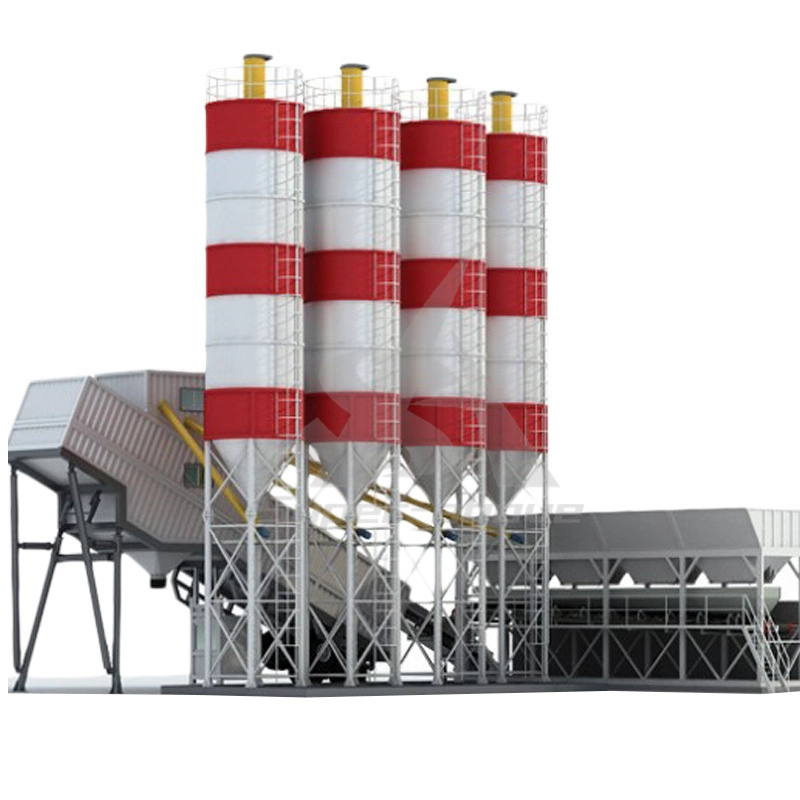

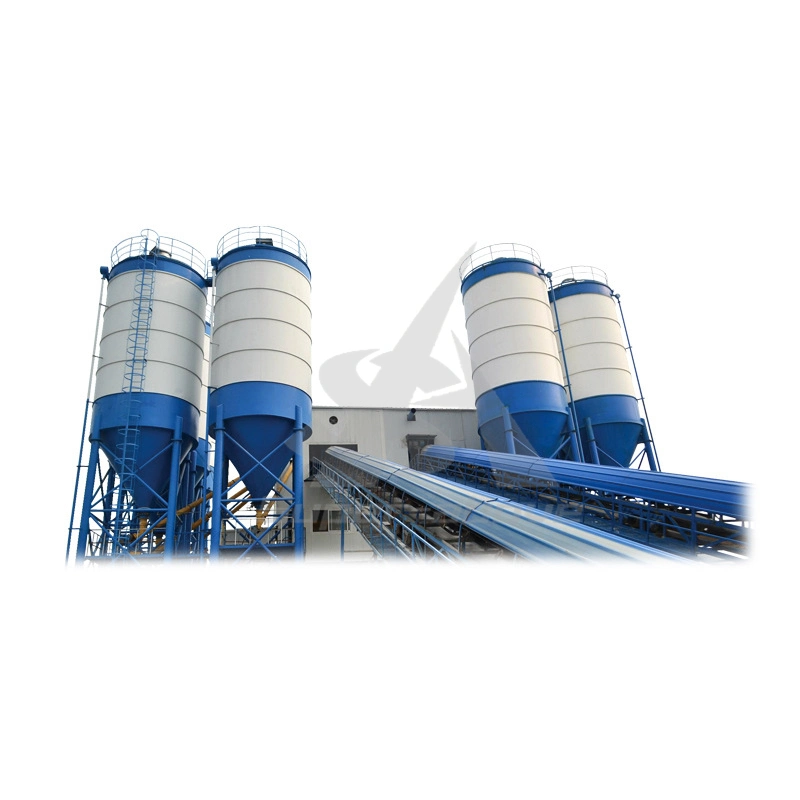

120m3/H wet-mix ready-mix concrete batching plant

Product Detail1,Planetary reducer;2,Easy-operation with imported SCHNEIDER and SIEMENS components in PLC+PC model;3,High efficiency with 120m3/h productivity; 4,Stable pneumatic system;5,Feeding method: belt feeder;6,Cement silo:60ton-200ton, split for shipping conveniently;7,High-resistant manganese steel alloys; 8,Pr

Featured Products

Product Detail
1,Planetary reducer;
2,Easy-operation with imported SCHNEIDER and SIEMENS components in PLC+PC model;
3,High efficiency with 120m3/h productivity;
4,Stable pneumatic system;
5,Feeding method: belt feeder;
6,Cement silo:60ton-200ton, split for shipping conveniently;
7,High-resistant manganese steel alloys;
8,Produce JS2000 concrete mixer in our own workshops.
Product NameHeavy Duty 120m3 ready mixed concrete batching plant with sicoma mixer
ApplicationBuilding,Road,Railway,Bridge etc.Construction Project
Productivity (m3 /h )120
Mix Recycle Time(s)60
Mixer ModelJS2000 Concrete Mixer
Batching Machine ModelPLD3200 Batching Machine
Discharging WayAuto Hydraulic
Aggregate Feeding MethodBelt Conveyor
Control SystemCentralized Computer Control
Cement Silo100T/200T/As Requirement
Product Keywords120 m3/h wet ready mixed concrete batching plant

120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant
120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant
120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant

Parameter
 TypeHZS120
The whole plantTheoretical productivity (m3/h)120
Standard discharge height(m)4
Working cycle time(s)120
Outline dimensions(L*W*H mm)55885*20200*21600
Total installed power210
The mixer sectionTypeJS2000
Batching machine sectionTypePLD3200
Pneumatic systemAir compressor model1.8-7
Rated exhaust volume(m3/min)1.67
Rated exhaust pressure(MPa)0.8
Motor power(KW)15
Weighing systemGravel metering accuracy range (kg) percentage+_2%
Cement metering accuracy range (kg) percentage+_1%
Water metering accuracy range (kg) percentage.+_1%
Additive metering accuracy range (kg)+_2%
ModelHZS25HZS35HZS50HZS60HZS90HZS120HZS180
Capacity (m3/h)2535506090120180
MixerJS500JS750JS1000JS1000JS1500JS2000JS3000
Aggregate batcherPLD1200PLD1200PLD1600PLD1600PLD2400PLD3200PLD4800
Discharge height (m)3.83.83.83.83.844
Cycle time (s)60606060606060
Weighing accuracyAggregate±0.02±0.02±0.02±0.02±0.02±0.02±0.02
Cement±0.01±0.01±0.01±0.01±0.01±0.01±0.01
Water±0.01±0.01±0.01±0.01±0.01±0.01±0.01
Additive±0.02±0.02±0.02±0.02±0.02±0.02±0.02

Packing & Delivery
120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant

Our Cases
120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant

120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant
120m3/H Wet Mix Ready Mix Concrete Mixing Batching Plant
